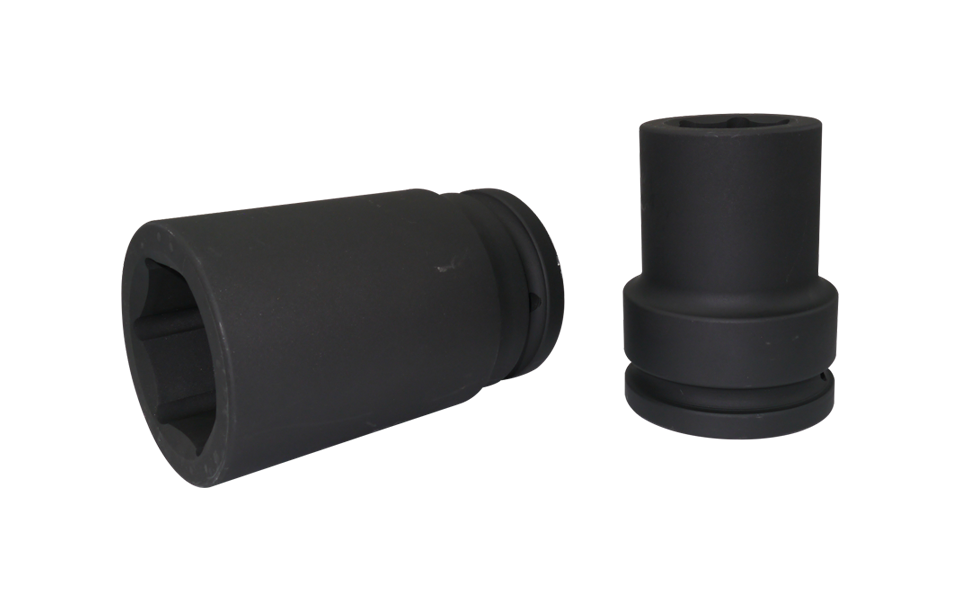

Impact Sockets & Accessories
1-1/2"DR.
Deep Length, EU Type
Deep Length - Metric & SAE (AF)
| Code | Part No. | Size (mm) | D1 (mm) | D2 (mm) | T (min. mm) | L (mm) |
|---|---|---|---|---|---|---|
| 16110411 | ES612M41L | 41 | 70 | 86 | 23 | 115 |
| 16110461 | ES612M46L | 46 | 76 | 86 | 24 | 115 |
| 16110501 | ES612M50L | 50 | 81 | 86 | 26 | 135 |
| 16110541 | ES612M54L | 54 | 86 | 86 | 30 | 140 |
| 16110551 | ES612M55L | 55 | 86 | 86 | 30 | 140 |
| 16110571 | ES612M57L | 57 | 86 | 86 | 36 | 150 |
| 16110601 | ES612M60L | 60 | 93 | 86 | 36 | 150 |
| 16110621 | ES612M62L | 62 | 96 | 86 | 36 | 150 |
| 16110651 | ES612M65L | 65 | 97 | 86 | 36 | 150 |
| 16110701 | ES612M70L | 70 | 105 | 86 | 38 | 160 |
| 16110731 | ES612M73L | 73 | 108 | 86 | 41 | 160 |
| 16110751 | ES612M75L | 75 | 110 | 86 | 41 | 170 |
| 16110761 | ES612M76L | 76 | 110 | 86 | 41 | 170 |
| 16110781 | ES612M78L | 78 | 115 | 86 | 43 | 170 |
| 16110801 | ES612M80L | 80 | 116 | 86 | 43 | 170 |
| 16110851 | ES612M85L | 85 | 125 | 86 | 45 | 170 |
| 16110901 | ES612M90L | 90 | 130 | 86 | 47 | 170 |
| 16110951 | ES612M95L | 95 | 137 | 95 | 52 | 180 |
| 16111001 | ES612M100L | 100 | 144 | 95 | 54 | 190 |
| 16111051 | ES612M105L | 105 | 150 | 95 | 54 | 190 |
| 16111101 | ES612M110L | 110 | 156 | 95 | 54 | 200 |
| 16111151 | ES612M151L | 115 | 164 | 95 | 62 | 210 |
| 16111201 | ES612M120L | 120 | 168 | 95 | 62 | 210 |
| Code | Part No. | Size (Inch) | D1 (mm) | D2 (mm) | T (min. mm) | L (mm) |
|---|---|---|---|---|---|---|
| 16210521 | ES612H1-58L | 1-5/8" | 70 | 86 | 23 | 115 |
| 16210541 | ES612H1-1116L | 1-1/16" | 71 | 86 | 23 | 115 |
| 16210561 | ES612H1-34L | 1-3/4" | 75 | 86 | 24 | 115 |
| 16210581 | ES612H1-1316L | 1-13/16" | 76 | 86 | 24 | 115 |
| 16210601 | ES612H1-78L | 1-7/8" | 78 | 86 | 26 | 115 |
| 16210621 | ES612H1-1516L | 1-15/16" | 80 | 86 | 26 | 115 |
| 16210641 | ES612H2L | 2" | 82 | 86 | 26 | 135 |
| 16210661 | ES612H2-116L | 2-1/16" | 83 | 86 | 27 | 140 |
| 16210681 | ES612H2-18L | 2-1/8" | 86 | 86 | 35 | 140 |
| 16210701 | ES612H2-316L | 2-3/16" | 86 | 86 | 35 | 140 |
| 16210721 | ES612H2-14L | 2-1/4" | 86 | 86 | 36 | 150 |
| 16210741 | ES612H2-516L | 2-5/16" | 92 | 86 | 36 | 150 |
| 16210761 | ES612H2-38L | 2-3/8" | 93 | 86 | 36 | 150 |
| 16210781 | ES612H2-716L | 2-7/16" | 96 | 86 | 38 | 150 |
| 16210801 | ES612H2-12L | 2-1/2" | 97 | 86 | 38 | 150 |
| 16210821 | ES612H2-916L | 2-9/16" | 97 | 86 | 38 | 150 |
| 16210841 | ES612H2-58L | 2-5/8" | 103 | 86 | 41 | 150 |
| 16210861 | ES612H2-1116L | 2-11/16" | 104 | 86 | 41 | 150 |
| 16210881 | ES612H2-34L | 2-3/4" | 105 | 86 | 41 | 160 |
| 16210901 | ES612H2-1316L | 2-13/16" | 108 | 86 | 41 | 160 |
| 16210921 | ES612H2-78L | 2-7/8" | 108 | 86 | 41 | 160 |
| 16210941 | ES612H2-1516L | 2-15/16" | 110 | 86 | 41 | 170 |
| 16210961 | ES612H3L | 3" | 110 | 86 | 41 | 170 |
| 16210981 | ES612H3-116L | 3-1/16" | 115 | 86 | 43 | 170 |
| 16211001 | ES612H3-18L | 3-1/8" | 116 | 86 | 43 | 170 |
| 16211081 | ES612H3-38L | 3-3/8" | 125 | 86 | 43 | 170 |
| 16211121 | ES612H3-12L | 3-1/2" | 130 | 86 | 47 | 170 |
| 16211141 | ES612H3-916L | 3-9/16" | 132 | 86 | 47 | 170 |
| 16211201 | ES612H3-34L | 3-3/4" | 137 | 95 | 52 | 180 |
| 16211241 | ES612H3-78L | 3-7/8" | 142 | 95 | 54 | 180 |
| 16211261 | ES612H3-1516L | 3-15/16" | 144 | 95 | 54 | 190 |
| 16211281 | ES612H4L | 4" | 145 | 95 | 54 | 190 |
| 16211301 | ES612H4-116L | 4-1/16" | 146 | 95 | 54 | 190 |
| 16211321 | ES612H4-18L | 4-1/8" | 150 | 95 | 54 | 190 |
| 16211341 | ES612H4-316L | 4-3/16" | 151 | 95 | 54 | 190 |
| 16211361 | ES612H4-14L | 4-1/4" | 153 | 95 | 54 | 190 |
| 16211381 | ES612H4-516L | 4-5/16" | 156 | 95 | 54 | 200 |
| 16211401 | ES612H4-38L | 4-3/8" | 160 | 95 | 54 | 200 |
| 16211421 | ES612H4-716L | 4-7/16" | 162 | 95 | 54 | 200 |
| 16211441 | ES612H4-12L | 4-1/2" | 163 | 95 | 62 | 210 |
| 16211481 | ES612H4-58L | 4-5/8" | 165 | 65 | 62 | 210 |
| 16211521 | ES612H4-34L | 4-3/4" | 168 | 95 | 62 | 210 |
