Impact Sockets & Accessories

zoom

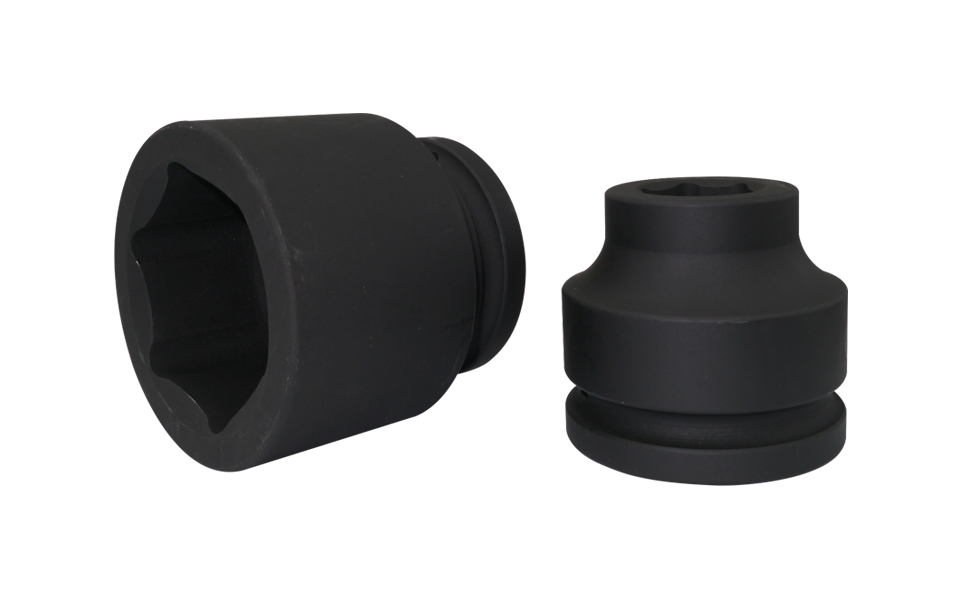

1-1/2"DR.

Standard Length, EU Type

Standard Length - Metric & SAE (AF)

Code Part No. Size (mm) D1 (mm) D2 (mm) T (min. mm) L (mm)
16110302 ES612M30 30 56 86 20 78
16110322 ES612M32 32 58 86 20 78
16110332 ES612M33 33 60 86 20 78
16110342 ES612M34 34 61 86 20 78
16110352 ES612M35 35 62 86 20 78
16110362 ES612M36 36 64 86 20 78
16110372 ES612M37 37 65 86 21 78
16110382 ES612M38 38 66 86 21 78
16110402 ES612M40 40 68 86 23 80
16110412 ES612M41 41 70 86 23 80
16110422 ES612M42 42 71 86 23 82
16110432 ES612M43 43 73 86 23 82
16110452 ES612M45 45 75 86 23 84
16110462 ES612M46 46 76 86 24 84
16110472 ES612M47 47 77 86 26 87
16110482 ES612M48 48 79 86 26 87
16110502 ES612M50 50 81 86 26 87
16110522 ES612M52 52 83 86 28 87
16110542 ES612M54 54 86 86 30 90
16110552 ES612M55 55 86 86 30 90
16110562 ES612M56 56 88 86 30 92
16110582 ES612M58 58 92 86 33 92
16110602 ES612M60 60 93 86 36 92
16110612 ES612M61 61 95 86 36 95
16110622 ES612M62 62 96 86 36 95
16110632 ES612M63 63 97 86 36 95
16110652 ES612M65 65 97 86 36 95
16110682 ES612M68 68 104 86 38 100
16110702 ES612M70 70 105 86 38 100
16110722 ES612M72 72 108 86 38 103
16110732 ES612M73 73 108 86 38 103
16110752 ES612M75 75 110 86 38 103
16110762 ES612M76 76 113 86 38 103
16110772 ES612M77 77 114 86 38 103
16110782 ES612M78 78 115 86 41 110
16110802 ES612M80 80 116 86 43 110
16110852 ES612M85 85 125 86 45 118
16110882 ES612M88 88 128 86 45 118
16110902 ES612M90 90 130 86 47 118
16110952 ES612M95 95 137 95 52 118
16111002 ES612M100 100 140 95 52 125
16111052 ES612M105 105 150 95 54 125
16111102 ES612M110 110 156 95 57 125
16111152 ES612M115 115 160 95 60 135
16111202 ES612M120 120 168 95 62 135
16111252 ES612M125 125 175 95 64 135
16111302 ES612M130 130 184 127 80 145
16111352 ES612M135 135 194 127 85 150
16111402 ES612M140 140 197 127 90 160
16111452 ES612M145 145 204 127 90 160
16111502 ES612M150 150 207 127 90 165
16111552 ES612M155 155 214 127 90 165
16111602 ES612M160 160 224 127 90 170
16111652 ES612M165 165 227 127 95 175
16111702 ES612M170 170 234 127 95 180
16111752 ES612M175 175 244 127 100 185
16111852 ES612M185 185 254 127 100 190



Code Part No. Size (Inch) D1 (mm) D2 (mm) T (min. mm) L (mm)
16210382 ES612H1-316 1-3/16" 56 86 20 78
16210402 ES612H1-14 1-1/4" 58 86 20 78
16210422 ES612H1-516 1-5/16" 60 86 20 78
16210442 ES612H1-38 1-3/8" 62 86 20 78
16210462 ES612H1-716 1-7/16" 64 86 20 78
16210482 ES612H1-12 1-1/2" 66 86 21 78
16210502 ES612H1-916 1-9/16" 68 86 21 78
16210522 ES612H1-58 1-5/8" 70 86 23 80
16210542 ES612H1-1116 1-11/16" 71 86 23 80
16210562 ES612H1-34 1-3/4" 75 86 24 84
16210582 ES612H1-1316 1-13/16" 76 86 24 84
16210602 ES612H1-78 1-7/8" 78 86 26 84
16210622 ES612H1-1516 1-15/16" 80 86 26 87
16210642 ES612H2 2" 82 86 26 87
16210662 ES612H2-116 2-1/16" 83 86 27 87
16210682 ES612H2-18 2-1/8" 86 86 35 90
16210702 ES612H2-316 2-3/16" 86 86 35 90
16210722 ES612H2-14 2-1/4" 86 86 35 92
16210742 ES612H2-516 2-5/16" 92 86 36 92
16210762 ES612H2-38 2-3/8" 93 86 36 92
16210782 ES612H2-716 2-7/16" 96 86 38 95
16210802 ES612H2-12 2-1/2" 97 86 38 95
16210822 ES612H2-916 2-9/16" 97 86 38 95
16210842 ES612H2-58 2-5/8" 103 86 41 100
16210862 ES612H2-1116 2-11/16" 104 86 41 100
16210882 ES612H2-34 2-3/4" 105 86 41 100
16210902 ES612H2-1316 2-13/16" 108 86 41 103
16210922 ES612H2-78 2-7/8" 108 86 41 103
16210942 ES612H2-1516 2-15/16" 110 86 41 103
16210962 ES612H3 3" 110 86 41 103
16210982 ES612H3-116 3-1/16" 115 86 43 110
16211002 ES612H3-18 3-1/8" 116 86 43 110
16211022 ES612H3-316 3-3/16" 125 86 43 110
16211042 ES612H3-14 3-1/4" 125 86 43 110
16211062 ES612H3-516 3-5/16" 125 86 43 118
16211082 ES612H3-38 3-3/8" 125 86 43 118
16211102 ES612H3-716 3-7/16" 128 86 45 118
16211122 ES612H3-12 3-1/2" 130 86 47 118
16211142 ES612H3-916 3-9/16" 132 86 47 118
16211162 ES612H3-58 3-5/8"  134 86 52 118
16211182 ES612H3-1116 3-11/16" 136 86 52 118
16211202 ES612H3-34 3-3/4" 137 95 52 118
16211222 ES612H3-1316 3-13/16" 140 95 54 125
16211242 ES612H3-78 3-7/8" 142 95 54 125
16211262 ES612H3-1516 3-15/16" 144 95 54 125
16211282 ES612H4 4" 145 95 54 125
16211302 ES612H4-116 4-1/16" 146 95 54 125
16211322 ES612H4-18 4-1/8" 150 95 54 125
16211342 ES612H4-316 4-3/16" 151 95 54 125
16211362 ES612H4-14 4-1/4" 153 95 54 125
16211382 ES612H4-516 4-5/16" 156 95 54 125
16211402 ES612H4-38 4-3/8" 160 95 54 125
16211422 ES612H4-716 4-7/16" 162 95 54 125
16211442 ES612H4-12 4-1/2" 163 95 62 135
16211482 ES612H4-58 4-5/8" 165 95 62 135
16211522 ES612H4-34 4-3/4" 168 95 62 135
16211562 ES612H4-78 4-7/8" 174 127 77 140
16211602 ES612H5 5" 177 127 80 145
16211642 ES612H5-18 5-1/8" 184 127 80 145
16211682 ES612H5-14 5-1/4" 187 127 85 150
16211722 ES612H5-38 5-3/8" 194 127 85 150
16211762 ES612H5-12 5-1/2" 197 127 90 160
16211922 ES612H6 6" 214 127 90 165
16212082 ES612H6-12 6-1/2" 227 127 95 175
