Impact Sockets & Accessories
1"DR.

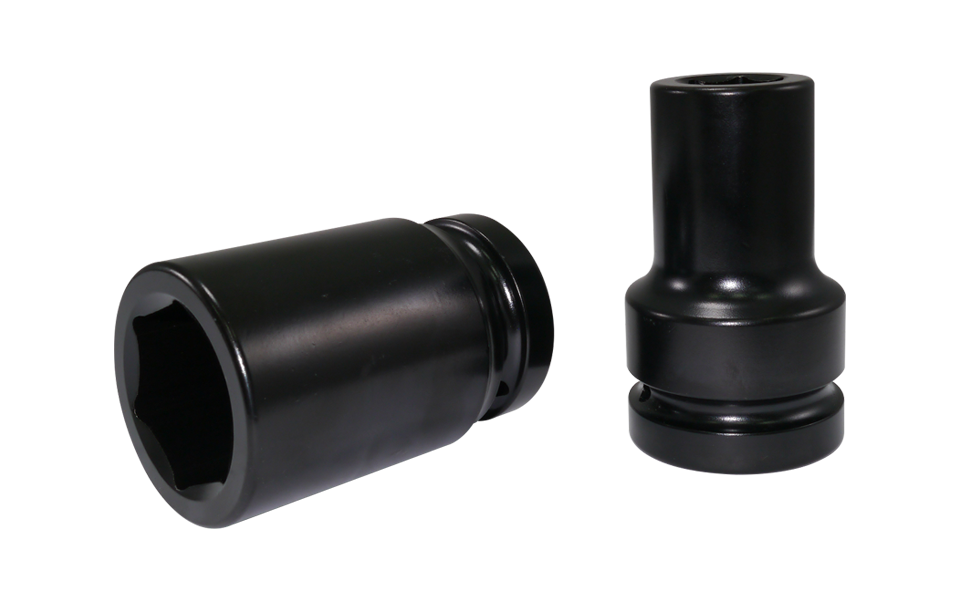

Deep Length, EU Type
Deep Length - Metric & SAE (AF)
| Code | Part No. | Size (mm) | D1 (mm) | D2 (mm) | T (min. mm) | L (mm) |
|---|---|---|---|---|---|---|
| 16180191 | ES68M19L | 19 | 35 | 54 | 25 | 90 |
| 16180201 | ES68M20L | 20 | 36 | 54 | 25 | 90 |
| 16180211 | ES68M21L | 21 | 37.5 | 54 | 25 | 90 |
| 16180221 | ES68M22L | 22 | 39 | 54 | 25 | 90 |
| 16180231 | ES68M23L | 23 | 40 | 54 | 25 | 90 |
| 16180241 | ES68M24L | 24 | 41.5 | 54 | 25 | 90 |
| 16180251 | ES68M25L | 25 | 42.5 | 54 | 25 | 90 |
| 16180261 | ES68M26L | 26 | 44 | 54 | 25 | 90 |
| 16180271 | ES68M27L | 27 | 45 | 54 | 25 | 90 |
| 16180281 | ES68M28L | 28 | 46.5 | 54 | 25 | 90 |
| 16180291 | ES68M29L | 29 | 47.5 | 54 | 25 | 90 |
| 16180301 | ES68M30L | 30 | 49 | 54 | 25 | 90 |
| 16180311 | ES68M31L | 31 | 50 | 54 | 25 | 90 |
| 16180321 | ES68M32L | 32 | 51.5 | 54 | 25 | 90 |
| 16180331 | ES68M33L | 33 | 52.5 | 54 | 25 | 90 |
| 16180341 | ES68M34L | 34 | 54 | 54 | 25 | 90 |
| 16180351 | ES68M35L | 35 | 55 | 54 | 25 | 90 |
| 16180361 | ES68M36L | 36 | 56.5 | 54 | 25 | 90 |
| 16180371 | ES68M37L | 37 | 58 | 54 | 25 | 90 |
| 16180381 | ES68M38L | 38 | 59 | 54 | 25 | 90 |
| 16180391 | ES68M39L | 39 | 60 | 54 | 25 | 90 |
| 16180401 | ES68M40L | 40 | 61 | 54 | 25 | 90 |
| 16180411 | ES68M41L | 41 | 62.5 | 54 | 25 | 90 |
| 16180421 | ES68M42L | 42 | 64 | 54 | 25 | 90 |
| 16180431 | ES68M43L | 43 | 65 | 54 | 25 | 90 |
| 16180441 | ES68M44L | 44 | 66 | 60.3 | 30 | 100 |
| 16180451 | ES68M45L | 45 | 67.5 | 60.3 | 30 | 100 |
| 16180461 | ES68M46L | 46 | 69 | 60.3 | 30 | 100 |
| 16180471 | ES68M47L | 47 | 70 | 60.3 | 30 | 100 |
| 16180481 | ES68M48L | 48 | 71.5 | 60.3 | 30 | 100 |
| 16180491 | ES68M49L | 49 | 73 | 60.3 | 30 | 100 |
| 16180501 | ES68M50L | 50 | 74 | 60.3 | 30 | 100 |
| 16180511 | ES68M51L | 51 | 75 | 60.3 | 30 | 100 |
| 16180521 | ES68M52L | 52 | 76.5 | 60.3 | 30 | 100 |
| 16180531 | ES68M53L | 53 | 78 | 60.3 | 35 | 100 |
| 16180541 | ES68M54L | 54 | 79 | 60.3 | 35 | 108 |
| 16180551 | ES68M55L | 55 | 80 | 60.3 | 35 | 108 |
| 16180561 | ES68M56L | 56 | 81.5 | 60.3 | 35 | 108 |
| 16180571 | ES68M57L | 57 | 82.5 | 60.3 | 35 | 108 |
| 16180581 | ES68M58L | 58 | 84 | 60.3 | 35 | 108 |
| 16180591 | ES68M59L | 59 | 85 | 60.3 | 35 | 108 |
| 16180601 | ES68M60L | 60 | 86.5 | 60.3 | 35 | 108 |
| 16180621 | ES68M62L | 62 | 88 | 60.3 | 35 | 120 |
| 16180631 | ES68M63L | 63 | 90 | 60.3 | 35 | 120 |
| 16180651 | ES68M65L | 65 | 92.5 | 60.3 | 35 | 120 |
| 16180671 | ES68M67L | 67 | 95 | 60.3 | 35 | 120 |
| 16180681 | ES68M68L | 68 | 96.5 | 60.3 | 35 | 120 |
| 16180691 | ES68M69L | 69 | 98 | 60.3 | 35 | 120 |
| 16180701 | ES68M70L | 70 | 99 | 60.3 | 35 | 125 |
| 16180711 | ES68M71L | 71 | 100 | 60.3 | 35 | 125 |
| 16180751 | ES68M75L | 75 | 105 | 60.3 | 35 | 125 |
| 16180771 | ES68M77L | 77 | 108 | 60.3 | 35 | 125 |
| 16180801 | ES68M80L | 80 | 111.5 | 60.3 | 35 | 125 |
| 16180851 | ES68M85L | 85 | 115 | 86 | 35 | 135 |
| 16180901 | ES68M90L | 90 | 124 | 86 | 35 | 135 |
| 16180951 | ES68M95L | 95 | 130 | 86 | 35 | 140 |
| Code | Part No. | Size (Inch) | D1 (mm) | D2 (mm) | T (min. mm) | L (mm) |
|---|---|---|---|---|---|---|
| 16280221 | ES68H1116L | 11/16" | 30 | 54 | 25 | 90 |
| 16280241 | ES68H34L | 3/4" | 35 | 54 | 25 | 90 |
| 16280261 | ES68H1316L | 13/16" | 37 | 54 | 25 | 90 |
| 16280281 | ES68H78L | 7/8" | 39 | 54 | 25 | 90 |
| 16280301 | ES68H1516L | 15/16" | 40.5 | 54 | 25 | 90 |
| 16280321 | ES68H1L | 1" | 42.5 | 54 | 25 | 90 |
| 16280341 | ES68H1-116L | 1-1/16" | 44.5 | 54 | 25 | 90 |
| 16280361 | ES68H1-18L | 1-1/8" | 46 | 54 | 25 | 90 |
| 16280381 | ES68H1-316L | 1-3/16" | 49 | 54 | 25 | 90 |
| 16280401 | ES68H1-14L | 1-1/4" | 51.5 | 54 | 25 | 90 |
| 16280421 | ES68H1-516L | 1-5/16" | 54 | 54 | 25 | 90 |
| 16280441 | ES68H1-38L | 1-3/8" | 55 | 54 | 25 | 90 |
| 16280461 | ES68H1-716L | 1-7/16" | 56.5 | 54 | 25 | 90 |
| 16280481 | ES68H1-12L | 1-1/2" | 59 | 54 | 25 | 90 |
| 16280501 | ES68H1-916L | 1-9/16" | 61 | 54 | 25 | 90 |
| 16280521 | ES68H1-58L | 1-5/8" | 62.5 | 54 | 25 | 90 |
| 16280541 | ES68H1-116L | 1-11/16" | 65 | 54 | 25 | 90 |
| 16280561 | ES68H1-34L | 1-3/4" | 67.5 | 60.3 | 31 | 100 |
| 16280581 | ES68H1-1316L | 1-13/16" | 69 | 60.3 | 31 | 100 |
| 16280601 | ES68H1-78L | 1-7/8" | 70 | 60.3 | 31 | 100 |
| 16280621 | ES68H1-1516L | 1-15/16" | 72.5 | 60.3 | 31 | 100 |
| 16280641 | ES68H2L | 2" | 74 | 60.3 | 31 | 100 |
| 16280661 | ES68H2-116L | 2-1/16" | 76.5 | 60.3 | 31 | 100 |
| 16280681 | ES68H2-18L | 2-1/8" | 79 | 60.3 | 31 | 108 |
| 16280701 | ES68H2-316L | 2-3/16" | 80 | 60.3 | 31 | 108 |
| 16280721 | ES68H2-14L | 2-1/4" | 82.5 | 60.3 | 36 | 108 |
| 16280741 | ES68H2-516L | 2-5/16" | 84 | 60.3 | 36 | 108 |
| 16280761 | ES68H2-38L | 2-3/8" | 86.5 | 60.3 | 36 | 108 |
| 16280781 | ES68H2-716L | 2-7/16" | 89 | 60.3 | 36 | 108 |
| 16280801 | ES68H2-12L | 2-1/2" | 91.5 | 60.3 | 36 | 120 |
| 16280821 | ES68H2-916L | 2-9/16" | 92.5 | 60.3 | 36 | 120 |
| 16280841 | ES68H2-58L | 2-5/8" | 95 | 60.3 | 44 | 120 |
| 16280861 | ES68H2-1116L | 2-11/16" | 96.5 | 60.3 | 44 | 120 |
| 16280881 | ES68H2-34L | 2-3/4" | 99 | 60.3 | 44 | 125 |
| 16280901 | ES68H2-1316L | 2-13/16" | 101.5 | 60.3 | 44 | 125 |
| 16280921 | ES68H2-78L | 2-7/8" | 102.5 | 60.3 | 44 | 125 |
| 16280941 | ES68H2-1516L | 2-15/16" | 104.5 | 60.3 | 44 | 125 |
| 16280961 | ES68H3L | 3" | 106.5 | 60.3 | 44 | 125 |
| 16280981 | ES68H3-116L | 3-1/16" | 109 | 60.3 | 44 | 125 |
| 16281001 | ES68H3-18L | 3-1/8" | 111.5 | 60.3 | 44 | 125 |
| 16281041 | ES68H3-14L | 3-1/4" | 115 | 86 | 44 | 135 |
| 16281081 | ES68H3-38L | 3-3/8" | 119 | 86 | 56 | 135 |
| 16281121 | ES68H3-12L | 3-1/2" | 124 | 86 | 56 | 135 |
| 16281161 | ES68H3-58L | 3-5/8" | 127 | 86 | 56 | 140 |
| 16281201 | ES68H3-34L | 3-3/4" | 130 | 86 | 56 | 140 |
| 16281241 | ES68H3-78L | 3-7/8" | 136 | 95 | 56 | 140 |
| 16281281 | ES68H4L | 4" | 140 | 95 | 56 | 155 |
| 16281321 | ES68H4-18L | 4-1/8" | 143 | 95 | 61 | 155 |
| 16281361 | ES68H4-14L | 4-1/4" | 146 | 95 | 61 | 155 |
| 16281401 | ES68H4-38L | 4-3/8" | 149 | 95 | 61 | 155 |
| 16281441 | ES68H4-12L | 4-1/2" | 152 | 95 | 61 | 155 |
