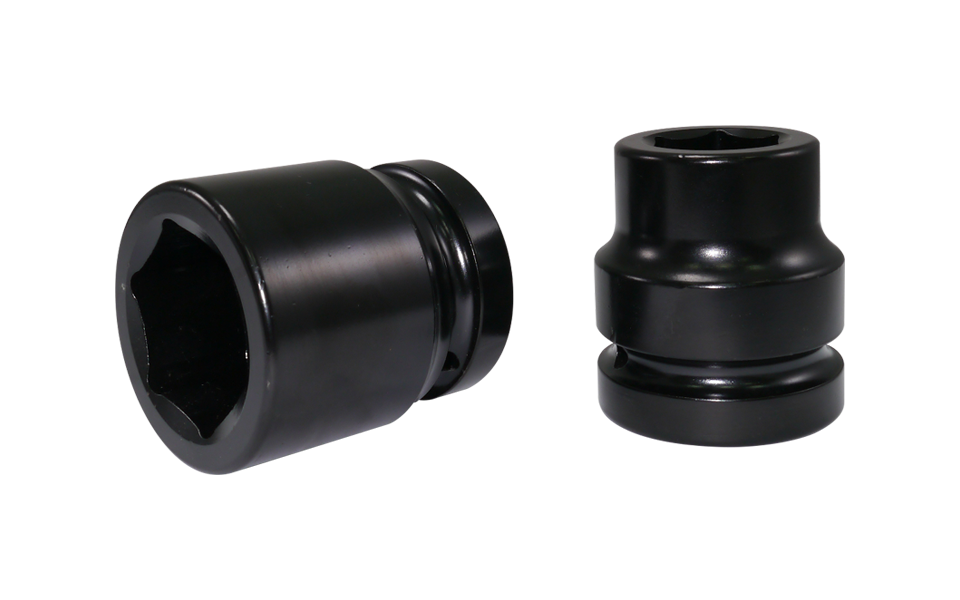

Impact Sockets & Accessories

zoom

1"DR.

Standard Length, EU Type

Standard Length - Metric & SAE (AF)

Code Part No. Size (mm) D1 (mm) D2 (mm) T (min. mm) L (mm)
16180192 ES68M19 19 35 54 17 58
16180201 ES68M20 20 36 54 17 58
16180212 ES68M21 21 37.5 54 17 58
16180222 ES68M22 22 39 54 17 58
16180232 ES68M23 23 40 54 17 58
16180242 ES68M24 24 41.5 54 17 58
16180252 ES68M25 25 42.5 54 17 60
16180262 ES68M26 26 44 54 17 60
16180272 ES68M27 27 45 54 17 60
16180282 ES68M28 28 46.5 54 17 60
16180292 ES68M29 29 47.5 54 19 62
16180302 ES68M30 30 49 54 19 62
16180312 ES68M31 31 50 54 19 62
16180322 ES68M32 32 51.5 54 19 63
16180332 ES68M33 33 52.5 54 21 63
16180342 ES68M34 34 54 54 21 63
16180352 ES68M35 35 55 54 21 66
16180362 ES68M36 36 56.5 54 23 66
16180372 ES68M37 37 58 54 23 66
16180382 ES68M38 38 59 54 23 66
16180392 ES68M39 39 60 54 23 66
16180402 ES68M40 40 61 54 23 66
16180412 ES68M41 41 62.5 54 25 68
16180422 ES68M42 42 64 54 25 68
16180432 ES68M43 43 65 54 25 70
16180442 ES68M44 44 66 60.3 25 70
16180452 ES68M45 45 67.5 60.3 25 70
16180462 ES68M46 46 69 60.3 29 72
16180472 ES68M47 47 70 60.3 29 72
16180482 ES68M48 48 71.5 60.3 29 76
16180492 ES68M49 49 73 60.3 29 76
16180502 ES68M50 50 74 60.3 31 76
16180512 ES68M51 51 75 60.3 31 76
16180522 ES68M52 52 76.5 60.3 31 80
16180532 ES68M53 53 78 60.3 31 80
16180542 ES68M54 54 79 60.3 31 80
16180552 ES68M55 55 80 60.3 34 84
16180562 ES68M56 56 81.5 60.3 34 84
16180572 ES68M57 57 82.5 60.3 34 84
16180582 ES68M58 58 84 60.3 34 84
16180592 ES68M59 85 85 60.3 35 88
16180602 ES68M60 60 86.5 60.3 35 88
16180622 ES68M62 62 88 60.3 35 88
16180632 ES68M63 63 90 60.3 35 88
16180652 ES68M65 65 92.5 30.3 35 92
16180672 ES68M67 67 95 60.3 35 92
16180682 ES68M68 68 96.5 60.3 35 96
16180692 ES68M69 69 98 60.3 35 96
16180702 ES68M70 70 99 60.3 35 96
16180712 ES68M71 71 100 60.3 35 96
16180752 ES68M75 75 105 60.3 35 102
16180772 ES68M77 77 108 60.3 35 102
16180802 ES68M80 80 111.5 60.3 35 102
16180852 ES68M85 85 117.5 86 35 106
16180902 ES68M90 90 124 86 35 108
16180952 ES68M95 95 130 86 35 110



Code Part No. Size (Inch) D1 (mm) D2 (mm) T (min. mm) L (mm)
16280222 ES68H1116 11/16" 30 54 17 58
16280242 ES68H34 3/4" 35 54 17 58
16280262 ES68H1316 13/16" 37.5 54 17 58
16280282 ES68H78 7/8" 39 54 17 58
16280302 ES68H1516 15/16" 40.5 54 17 58
16280322 ES68H1 1" 42.5 54 17 60
16280342 ES68H1-116 1-1/16" 44.5 54 17 60
16280362 ES68H1-18 1-1/8" 46 54 17 62
16280382 ES68H1-316 1-3/16" 49 54 17 62
16280402 ES68H1-14 1-1/4" 51.5 54 17 63
16280422 ES68H1-516 1-5/16" 54 54 19 63
16280442 ES68H1-38 1-3/8" 55 54 19 66
16280462 ES68H1-716 1-7/16" 56.5 54 19 66
16280482 ES68H1-12 1-1/2" 59 54 22 66
16280502 ES68H1-916 1-9/16" 61 54 22 66
16280522 ES68H1-58 1-5/8" 62.5 54 22 68
16280542 ES68H1-1116 1-11/16" 65 54 25 70
16280562 ES68H1-34 1-3/4" 67.5 60.3 25 70
16280582 ES68H1-1316 1-13/16" 69 60.3 27 72
16280602 ES68H1-78 1-7/8" 70 60.3 27 72
16280622 ES68H1-1516 1-15/16" 72.5 60.3 27 76
16280642 ES68H2 2" 74 60.3 27 76
16280662 ES68H2-116 2-1/16" 76.5 60.3 31 80
16280682 ES68H2-18 2-1/8" 79 60.3 31 80
16280702 ES68H2-316 2-3/16" 80 60.3 31 84
16280722 ES68H2-14 2-1/4" 82.5 60.3 34 84
16280742 ES68H2-516 2-5/16" 84 60.3 34 84
16280762 ES68H2-38 2-3/8" 86.5 60.3 34 88
16280782 ES68H2-716 2-7/16" 89 60.3 36 88
16280802 ES68H2-12 2-1/2" 91.5 60.3 36 88
16280822 ES68H2-916 2-9/16" 92.5 60.3 36 92
16280842 ES68H2-58 2-5/8" 95 60.3 38 92
16280862 ES68H2-1116 2-11/16" 96.5 60.3 38 96
16280882 ES68H2-34 2-3/4" 99 60.3 38 96
16280902 ES68H2-1316 2-13/16" 101.5 60.3 41 96
16280922 ES68H2-78 2-7/8" 102.5 60.3 41 96
16280942 ES68H2-1516 2-15/16" 104.5 60.3 41 100
16280962 ES68H3 3" 106.5 60.3 44 100
16280982 ES68H3-116 3-1/16" 109 60.3 44 100
16281002 ES68H3-18 3-1/8" 111 60.3 44 100
16281042 ES68H3-14 3-1/4" 115 86 44 102
16281082 ES68H3-38 3-3/8" 119 86 49 106
16281122 ES68H3-12 3-1/2" 124 86 49 108
16281162 ES68H3-58 3-5/8" 127 86 53 110
16281202 ES68H3-34 3-3/4" 130 86 53 110
16281242 ES68H3-78 3-7/8" 136 95 56 115
16281282 ES68H4 4" 140 95 56 115
16281322 ES68H4-18 4-1/8" 143 95 59 120
16281362 ES68H4-14 4-1/4" 146 95 59 120
16281402 ES68H4-38 4-3/8" 149 95 61 120
16281442 ES68H4-12 4-1/2" 152 95 61 120
