Impact Sockets & Accessories

zoom

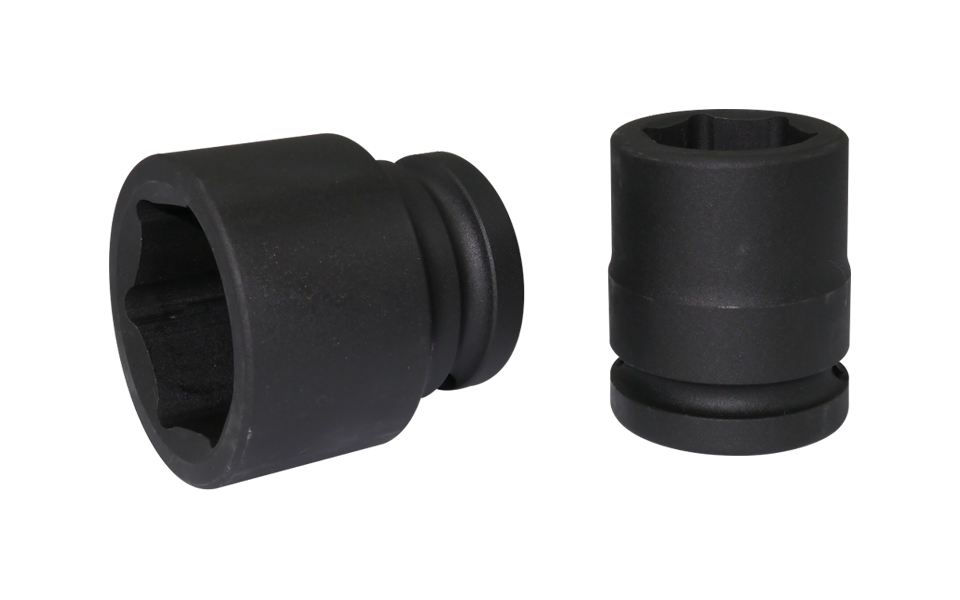

3/4"DR.

Standard Length, EU Type

Standard Length - Metric & SAE (AF)

Code Part No. Size (mm) D1(mm) D2 (mm) T (min. mm) L (mm)
16160172 ES66M17 17 30 44 13 51
16160182 ES66M18 18 31 44 13 51
16160192 ES66M19 19 32.5 44 13 51
16160202 ES66M20 20 33.5 44 13 51
16160212 ES66M21 21 35 44 13 51
16160222 ES66M22 22 36 44 13 51
16160232 ES66M23 23 37.5 44 13 51
16160242 ES66M24 24 38.5 44 16 51
16160252 ES66M25 25 40 44 16 53
16160262 ES66M26 26 41 44 16 53
16160272 ES66M27 27 42.5 44 16 53
16160282 ES66M28 28 44 44 19 53
16160292 ES66M29 29 45 44 19 53
16160302 ES66M30 30 46 44 19 53
16160312 ES66M31 31 47.5 44 19 57
16160322 ES66M32 32 48.5 44 19 57
16160332 ES66M33 33 50 44 22 57
16160342 ES66M34 34 51 44 22 57
16160352 ES66M35 35 52.5 44 22 57
16160362 ES66M36 36 53.5 44 22 57
16160372 ES66M37 37 55 44 22 57
16160382 ES66M38 38 56 44 22 57
16160392 ES66M39 39 57 44 22 58
16160402 ES66M40 40 58.5 44 22 58
16140412 ES66M41 41 60 44 22 58
16160422 ES66M42 42 61 44 25 58
16160432 ES66M43 43 62.5 44 25 62
16160442 ES66M44 44 64 44 25 62
16160452 ES66M45 45 65 44 25 62
16160462 ES66M46 46 66 44 25 62
16160472 ES66M47 47 67 44 30 68
16160482 ES66M48 48 68 44 30 68
16160492 ES66M49 49 70 44 30 68
16160502 ES66M50 50 71 44 30 68
16160542 ES66M54 54 76 54 32 71
16160552 ES66M55 55 78 54 32 71
16160582 ES66M58 58 81 54 32 71
16160602 ES66M60 60 83.5 54 34 73
16160632 ES66M63 63 86 54 34 73
16160652 ES66M65 65 88 54 34 73



Code Part No. Size (Inch) D1 (mm) D2 (mm) T (min. mm) L (mm)
16260162 ES66H12 1/2" 23 41.4 13 51
16260182 ES66H916 9/16" 25.5 41.4 13 51
16260202 ES66H58 5/8" 28 41.4 13 51
16260222 ES66H1116 11/16" 29.5 41.4 13 51
16260242 ES66H34 3/4" 32 41.4 13 51
16260262 ES66H1316 13/16" 35 41.4 13 51
16260282 ES66H78 7/8" 36 41.4 13 51
16260302 ES66H1516 15/16" 38.5 41.4 13 51
16260322 ES66H1 1" 40 41.4 13 53
16260342 ES66H1-116 1-1/16" 42.5 44 13 53
16260362 ES66H1-18 1-1/8" 44 44 16 53
16260382 ES66H1-316 1-3/16" 46 44 16 53
16260402 ES66H1-14 1-1/4" 48 44 16 57
16260402 ES66H1-516 1-5/16" 50 44 19 57
16260442 ES66H1-38 1-3/8" 52.5 44 19 57
16260462 ES66H1-716 1-7/16" 53.5 44 19 57
16260482 ES66H1-12 1-1/2" 56 44 22 57
16260502 ES66H1-916 1-9/16" 58.5 44 22 58
16260522 ES66H1-58 1-5/8" 60 44 22 58
16260542 ES66H1-1116 1-11/16" 63.5 44 26 62
16260562 ES66H1-34 1-3/4" 64.5 44 26 62
16260582 ES66H1-1316 1-13/16" 66 44 26 62
16260602 ES66H1-78 1-7/8" 68 44 27 68
16260622 ES66H1-1516 1-15/16" 70 40 27 68
16260642 ES66H2 2" 71 44 27 68
16260662 ES66H2-116 2-1/16" 74 54 31 71
16260682 ES66H2-18 2-1/8" 76 54 31 71
16260702 ES66H2-316 2-3/16" 78 54 31 71
16260722 ES66H2-14 2-1/4" 80 54 33 73
16260742 ES66H2-516 2-5/16" 81.5 54 33 73
16260762 ES66H2-38 2-3/8" 83.5 54 34 73
16260782 ES66H2-716 2-7/16" 85 54 34 75
16260802 ES66H2-12 2-1/2" 86.5 54 34 75
