Impact Sockets & Accessories

zoom

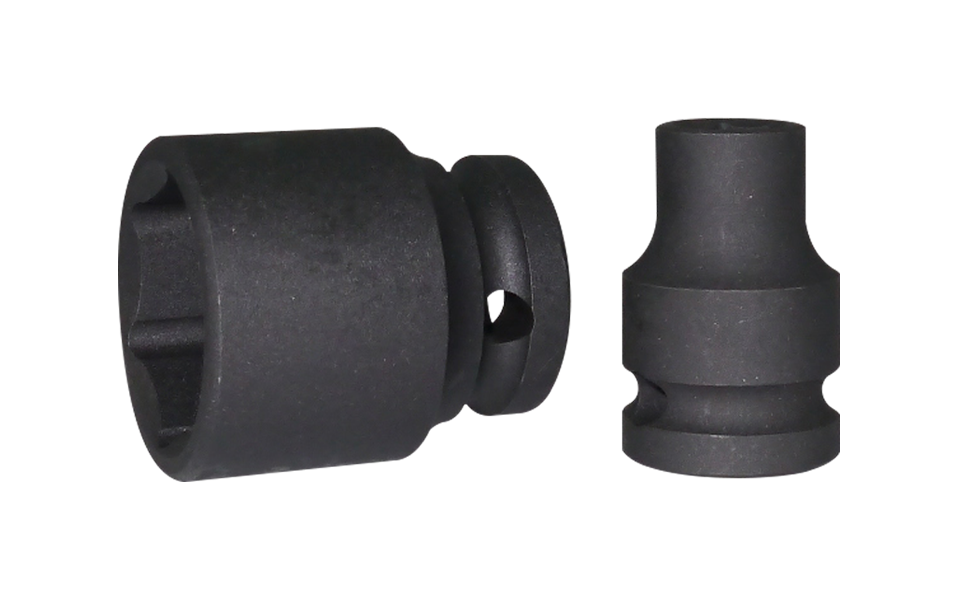

1/2"DR.

Standard Length, EU Type

Standard Length - Metric & SAE (AF)

Code Part No. Size (mm) D1 (mm) D2 (mm) T (min. mm) L (mm)
16140082 ES64M8 8 14 25 9 38
16140092 ES64M9 9 15 25 11 38
16140102 ES64M10 10 17 25 11 38
16140112 ES64M11 11 18 25 11 38
16140122 ES64M12 12 19 25 11 38
16140132 ES64M13 13 20 25 11 38
16140142 ES64M14 14 22 25 11 38
16140152 ES64M15 15 23 25 11 38
16140162 ES64M16 16 24 30 11 38
16140172 ES64M17 17 26 30 11 38
16140182 ES64M18 18 27 30 11 38
16140192 ES64M19 19 28 30 13 38
16140202 ES64M20 20 29 30 13 38
16140212 ES64M21 21 30 30 3 38
16140222 ES64M22 22 31.8 30 13 38
16140232 ES64M23 23 31.8 30 18 38
16140242 ES64M24 24 33.8 30 15 40
16140252 ES64M25 25 35 30 15 40
16140262 ES64M26 26 35.8 30 15 43
16140272 ES64M27 27 37.8 30 18.3 43
16140282 ES64M28 28 39.8 30 18.3 43
16140292 ES64M29 29 39.8 30 18.3 43
16140302 ES64M30 30 41.8 30 18.3 43
16140322 ES64M32 32 43.8 30 18.3 43
16140332 ES64M33 33 44.8 30 20 46
16140342 ES64M34 34 45.8 30 20 46
16140352 ES64M35 35 47.8 30 20 50
16140362 ES64M36 36 49.8 30 20 50
16140382 ES64M38 38 53 38 20 50



Code Part No. Size (Inch) D1 (mm) D2 (mm) T (min. mm) L (mm)
16240102 ES64H516 5/16" 14 25 9 38
16240122 ES64H38 3/8" 17 25 9 38
16240142 ES64H716 7/16" 18 25 9 38
16240162 ES64H12 1/2" 20 25 9 38
16240182 ES64H916 9/16" 22 25 11 38
16240202 ES64H58 5/8" 24 30 11 38
16240222 ES64H1116 11/16" 26 30 11 38
16240242 ES64H34 3/4" 28 30 11 38
16240262 ES64H1316 13/16" 30 30 11 38
16240282 ES64H78 7/8" 31.8 30 13 38
16240302 ES64H1516 15/16" 33.8 30 13 40
16240322 ES64H1 1 35.8 30 13 43
16240342 ES64H1-116 1-1/16" 37.8 30 13 43
16240362 ES64H1-18 1-1/8" 39.8 30 16.5 43
16240382 ES64H1-316 1-3/16" 41.8 30 16.5 43
16240402 ES64H1-14 1-1/4" 43.8 30 16.5 43
16240422 ES64H1-516 1-5/16" 44.8 30 18 46
16240442 ES64H1-38 1-3/8" 47.8 30 20 50
16240462 ES64H1-716 1-7/16" 49.8 30 20 50
16240482 ES64H1-12 1-1/2" 51.8 30 20 50
