Impact Sockets & Accessories
3/8"DR.

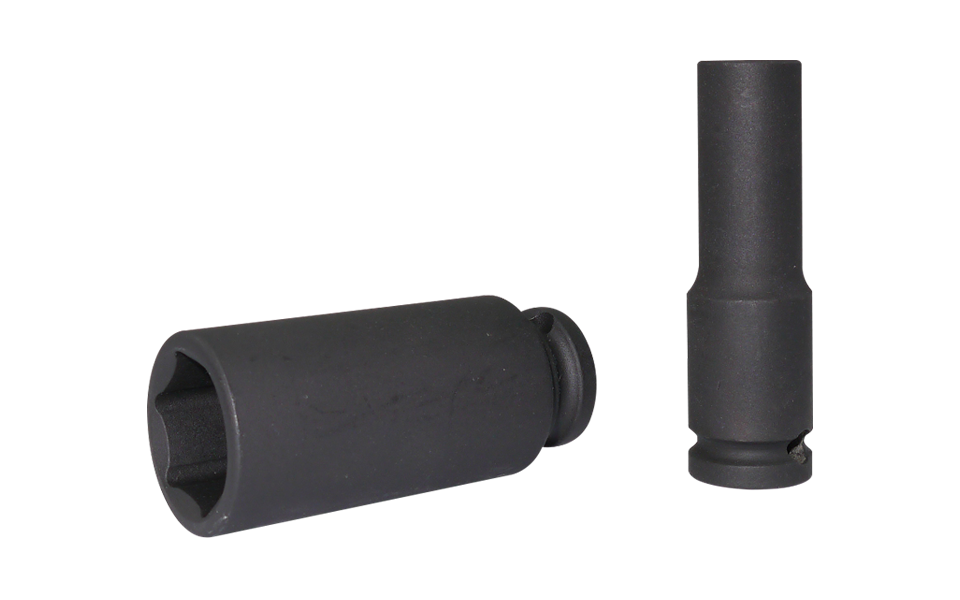

Deep Length, EU Type
Deep Length - Metric & SAE (AF)
| Code | Part No. | Size (mm) | D1 (mm) | D2 (mm) | T (min.mm) | L (mm) |
|---|---|---|---|---|---|---|
| 16130061 | ES63M6L | 6 | 11.3 | 19 | 11 | 63 |
| 16130071 | ES63M7L | 7 | 12.1 | 19 | 11 | 63 |
| 16130081 | ES63M8L | 8 | 13.5 | 19 | 12 | 63 |
| 16130091 | ES63M9L | 9 | 14.5 | 19 | 14 | 63 |
| 16130101 | ES63M10L | 10 | 15.9 | 19 | 14 | 63 |
| 16130111 | ES63M11L | 11 | 17.1 | 19 | 17 | 63 |
| 16130121 | ES63M12L | 12 | 18.4 | 19 | 17 | 63 |
| 16130131 | ES63M13L | 13 | 19.6 | 22 | 17 | 63 |
| 16130141 | ES63M14L | 14 | 20.9 | 22 | 17 | 63 |
| 16130151 | ES63M15L | 15 | 22 | 22 | 19 | 63 |
| 16130161 | ES63M16L | 16 | 23.8 | 22 | 19 | 63 |
| 16130171 | ES63M17L | 17 | 23.8 | 22 | 19 | 63 |
| 16130181 | ES63M18L | 18 | 25.8 | 22 | 19 | 63 |
| 16130191 | ES63M19L | 19 | 27.8 | 22 | 21 | 63 |
| 16130201 | ES63M20L | 20 | 29 | 22 | 21 | 63 |
| 16130211 | ES63M21L | 21 | 29.8 | 22 | 21 | 63 |
| 16130221 | ES63M22L | 22 | 31.8 | 22 | 21 | 63 |
| 16130231 | ES63M23L | 23 | 31.8 | 22 | 21 | 63 |
| 16130241 | ES63M24L | 24 | 33.8 | 22 | 21 | 63 |
| Code | Part No. | Size (Inch) | D1 (mm) | D2 (mm) | T (min. mm) | L (mm) |
|---|---|---|---|---|---|---|
| 16230081 | ES63H14L | 1/4" | 11 | 19 | 12 | 63 |
| 16230101 | ES63H516L | 5/16" | 13.5 | 19 | 14 | 63 |
| 16230121 | ES63H38L | 3/8" | 15 | 19 | 17 | 63 |
| 16230141 | ES63H716L | 7/16" | 17.3 | 19 | 17 | 63 |
| 16230161 | ES63H12L | 1/2" | 20.2 | 22 | 17 | 63 |
| 16230181 | ES63H916L | 9/16" | 21.1 | 22 | 17 | 63 |
| 16230201 | ES63H58L | 5/8" | 23.8 | 22 | 17 | 63 |
| 16230221 | ES63H1116L | 11/16" | 23.8 | 22 | 17 | 63 |
| 16230241 | ES63H34L | 3/4" | 27.8 | 22 | 19 | 63 |
| 16230261 | ES63H1316L | 13/16" | 29.8 | 22 | 19 | 63 |
| 16230281 | ES63H78L | 7/8" | 31.8 | 22 | 19 | 63 |
| 16230301 | ES63H1516L | 15/16" | 33.8 | 22 | 21 | 63 |
| 16230321 | ES63H1L | 1" | 36 | 22 | 21 | 63 |
