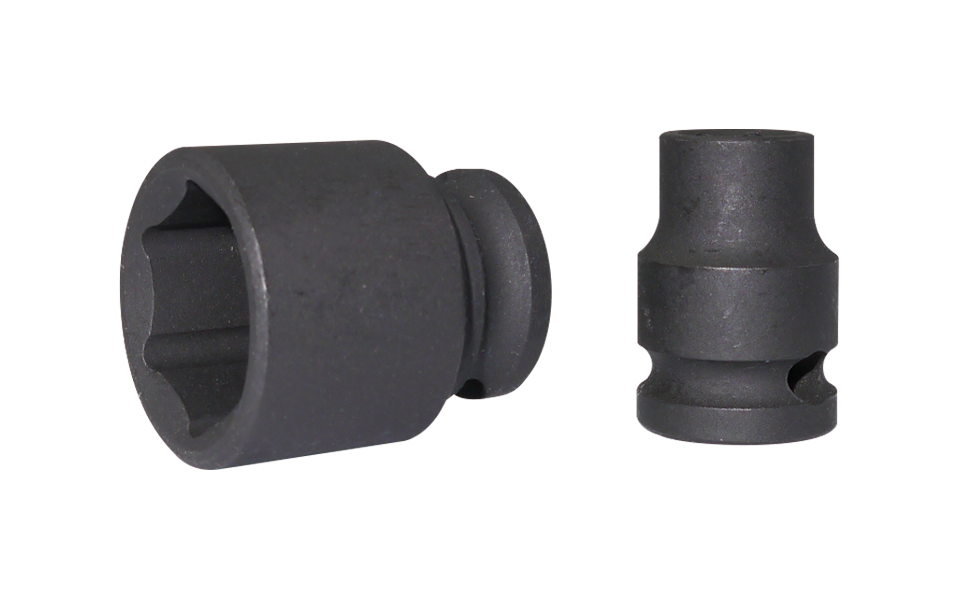

Impact Sockets & Accessories
3/8"DR.
Standard Length, EU Type
Standard Length - Metric & SAE (AF)
| Code | Part No. | Size (mm) | D1 (mm) | D2 (mm) | T (min. mm) | L (mm) |
|---|---|---|---|---|---|---|
| 16130062 | ES63M6 | 6 | 11.3 | 19 | 4 | 28 |
| 16130072 | ES63M7 | 7 | 12.1 | 19 | 7 | 28 |
| 16130082 | ES63M8 | 8 | 13.5 | 19 | 7 | 28 |
| 16130092 | ES63M9 | 9 | 14.5 | 19 | 7 | 28 |
| 16130102 | ES63M10 | 10 | 16.6 | 19 | 7 | 30 |
| 16130112 | ES63M11 | 11 | 17.6 | 19 | 7 | 30 |
| 16130122 | ES63M12 | 12 | 18.8 | 19 | 7 | 30 |
| 16130132 | ES63M13 | 13 | 20 | 22 | 7 | 30 |
| 16130142 | ES63M14 | 14 | 20.8 | 22 | 7 | 30 |
| 16130152 | ES63M15 | 15 | 22 | 22 | 10 | 30 |
| 16130162 | ES63M16 | 16 | 23.8 | 22 | 10 | 30 |
| 16130172 | ES63M17 | 17 | 24.7 | 22 | 10 | 30 |
| 16130182 | ES63M18 | 18 | 25.6 | 22 | 13 | 30 |
| 16130192 | ES63M19 | 19 | 27.8 | 22 | 13 | 30 |
| 16130202 | ES63M20 | 20 | 29.7 | 22 | 13 | 30 |
| 16130212 | ES63M21 | 21 | 29.7 | 22 | 13 | 30 |
| 16130222 | ES63M22 | 22 | 31.7 | 22 | 13 | 30 |
| 16130232 | ES63M23 | 23 | 31.8 | 22 | 13 | 32 |
| 16130242 | ES63M24 | 24 | 33.8 | 22 | 13 | 32 |
| Code | Part No. | Size (Inch) | D1 (mm) | D2 (mm) | T (min. mm) | L (mm) |
|---|---|---|---|---|---|---|
| 16230082 | ES63H14 | 1/4" | 11 | 19 | 4 | 28 |
| 16230102 | ES63H516 | 5/16" | 13.5 | 19 | 7 | 28 |
| 16230122 | ES63H38 | 3/8" | 15 | 19 | 7 | 28 |
| 16230142 | ES63H716 | 7/16" | 17.3 | 19 | 7 | 30 |
| 16230162 | ES63H12 | 1/2" | 20.2 | 22 | 7 | 30 |
| 16230182 | ES63H916 | 9/16" | 21.1 | 22 | 7 | 30 |
| 16230202 | ES63H58 | 5/8" | 23.8 | 22 | 10 | 30 |
| 16230222 | ES63H1116 | 11/16" | 23.8 | 22 | 10 | 32 |
| 16230242 | ES63H34 | 3/4" | 27.8 | 22 | 10 | 32 |
| 16230262 | ES63H1316 | 13/16" | 29.8 | 22 | 13 | 32 |
| 16230282 | ES63H78 | 7/8" | 31.8 | 22 | 13 | 32 |
| 16230302 | ES63H1516 | 15/16" | 33.8 | 22 | 13 | 32 |
| 16230322 | ES63H1 | 1" | 34 | 22 | 13 | 32 |
