Impact Sockets & Accessories
1/4"DR.

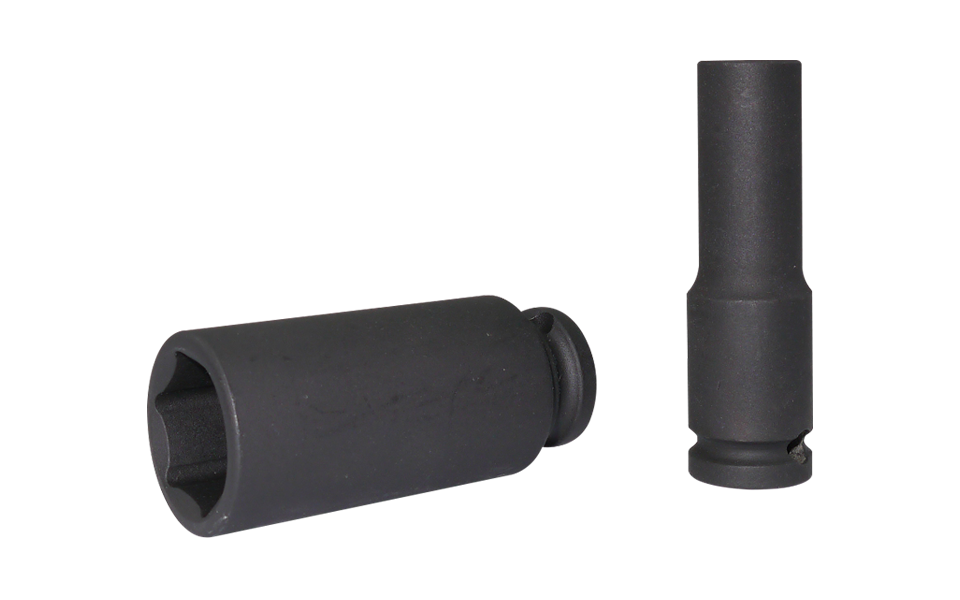

Deep Length, EU Type
Deep Length - Metric & SAE (AF)
| Code | Part No. | Size (Inch) | D1 (mm) | D2 (mm) | T (min. mm) | L (mm) |
|---|---|---|---|---|---|---|
| 16120401 | ES62M4L | 4 | 7.6 | 13 | 5 | 50 |
| 16120451 | ES62M45L | 4.5 | 8.2 | 13 | 5 | 50 |
| 16120501 | ES62M5L | 5 | 8.8 | 13 | 5 | 50 |
| 16120551 | ES62M55L | 5.5 | 9.5 | 13 | 5 | 50 |
| 16120601 | ES62M6L | 6 | 10 | 13 | 7 | 50 |
| 16120701 | ES62M7L | 7 | 11.3 | 13 | 7 | 50 |
| 16120801 | ES62M8L | 8 | 12.5 | 13 | 7 | 50 |
| 16120901 | ES62M9L | 9 | 13 | 13 | 7 | 50 |
| 16121001 | ES62M10L | 10 | 14.3 | 13 | 7 | 50 |
| 16121101 | ES62M11L | 11 | 15.8 | 13 | 8 | 50 |
| 16121201 | ES62M11L | 12 | 16.8 | 13 | 8 | 50 |
| 16121301 | ES62M13L | 13 | 18.8 | 13 | 8 | 50 |
| 16121401 | ES62M14L | 14 | 19.8 | 13 | 8 | 50 |
| 16121501 | ES62M15L | 15 | 20.8 | 13 | 8 | 50 |
| Code | Part No. | Size (Inch) | D1 (mm) | D2 (mm) | T (min. mm) | L (mm) |
|---|---|---|---|---|---|---|
| 16220051 | ES62H532L | 5/32" | 7.6 | 13 | 5 | 50 |
| 16220061 | ES62H316L | 3/16" | 8.5 | 13 | 5 | 50 |
| 16220071 | ES2H732L | 7/32" | 9.5 | 13 | 5 | 50 |
| 16220081 | ES62H14L | 1/4" | 10.3 | 13 | 5 | 50 |
| 16220091 | ES62H932L | 9/32" | 11.3 | 13 | 7 | 50 |
| 16220101 | ES62H516L | 5/16" | 12.5 | 13 | 7 | 50 |
| 16220111 | ES62H1132L | 11/32" | 13 | 13 | 7 | 50 |
| 16220121 | ES62H38L | 3/8" | 14.3 | 13 | 8 | 50 |
| 16220141 | ES62H716L | 7/16" | 15.8 | 13 | 8 | 50 |
| 16220161 | ES62H12L | 1/2" | 18.8 | 13 | 8 | 50 |
| 16220181 | ES62H916L | 9/16" | 19.8 | 13 | 8 | 50 |
