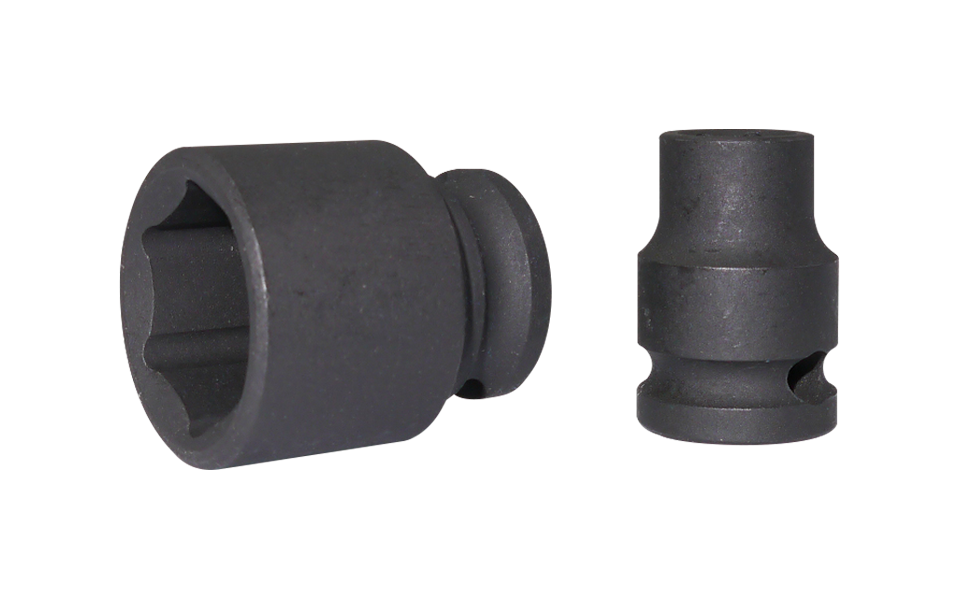

Impact Sockets & Accessories
1/4"DR.
Standard Length, EU Type
Standard Length - Metric & SAE (AF)
| Code | Part No. | Size (mm) | D1 (mm) | D2 (mm) | T (min. mm) | L (mm) |
|---|---|---|---|---|---|---|
| 16120402 | ES62M4 | 4 | 7.8 | 13 | 5 | 23 |
| 16120452 | ES62M45 | 4.5 | 8.3 | 13 | 5 | 23 |
| 16120502 | ES62M5 | 5 | 8.9 | 13 | 5 | 23 |
| 16120552 | ES62M55 | 5.5 | 9.8 | 13 | 5 | 23 |
| 16120602 | ES62M6 | 6 | 10.5 | 13 | 7 | 23 |
| 16120702 | ES62M7 | 7 | 11.3 | 13 | 7 | 23 |
| 16120802 | ES62M8 | 8 | 12.5 | 13 | 7 | 23 |
| 16120902 | ES62M9 | 9 | 13.8 | 13 | 7 | 23 |
| 16121002 | ES62M10 | 10 | 14.2 | 13 | 7 | 23 |
| 16121102 | ES62M11 | 11 | 16.9 | 13 | 8 | 23 |
| 16121202 | ES62M12 | 12 | 17.8 | 13 | 8 | 23 |
| 16121302 | ES62M13 | 13 | 18.7 | 13 | 8 | 23 |
| 16121402 | ES62M14 | 14 | 19.8 | 13 | 8 | 23 |
| 16121502 | ES62M15 | 15 | 20.8 | 13 | 8 | 23 |
| Code | Part No. | Size (Inch) | D1 (mm) | D2 (mm) | T (min. mm) | L (mm) |
|---|---|---|---|---|---|---|
| 16220052 | ES62H532 | 5/32" | 7.6 | 13 | 5 | 23 |
| 16220062 | ES62H316 | 3/16" | 8.5 | 13 | 5 | 23 |
| 16220072 | ES62H732 | 7/32" | 9.5 | 13 | 5 | 23 |
| 16220082 | ES62H14 | 1/4" | 10.3 | 13 | 5 | 23 |
| 16220092 | ES62H932 | 9/32" | 11.3 | 13 | 7 | 23 |
| 16220102 | ES62H516 | 5/16" | 12.5 | 13 | 7 | 23 |
| 16220112 | ES62H1132 | 11/32" | 13 | 13 | 7 | 23 |
| 16220122 | ES62H38 | 3/8" | 14.3 | 13 | 8 | 23 |
| 16220142 | ES62H716 | 7/16" | 15.8 | 13 | 8 | 23 |
| 16220162 | ES62H12 | 1/2" | 18.8 | 13 | 8 | 23 |
| 16220182 | ES62H916 | 9/16" | 19.8 | 13 | 8 | 23 |
