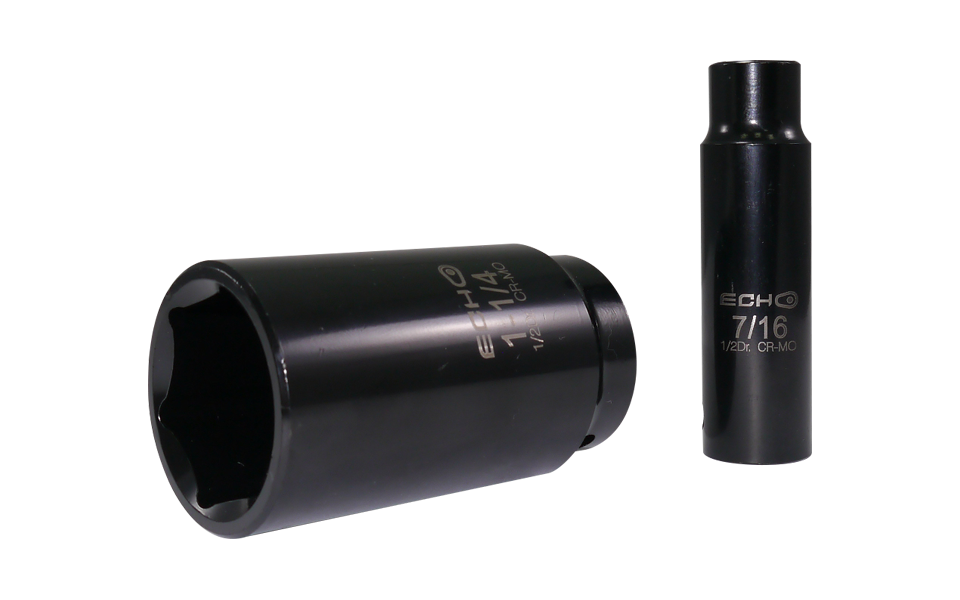

Impact Sockets & Accessories

zoom

1/2"DR.

Deep Length US Type

Deep Length - Metric & SAE (AF)

Code Part No. Size (mm) D1 (mm) D2 (mm) T (min. mm) L (mm)
26140081 US64M8L 8 14 22 11 78
26140091 US64M9L 9 15 22 14 78
26140101 US64M10L 10 17 22 14 78
26140111 US64M11L 11 18 22 14 78
26140121 US64M12L 12 19 22 14 78
26140131 US64M13L 13 20 24 14 78
26140141 US64M14L 14 22 24 19 78
26140151 US64M15L 15 24 24 19 78
26140161 US64M16L 16 24 24 19 78
26140171 US64M17L 17 26 26 19 78
26140181 US64M18L 18 26 16 19 78
26140191 US64M19L 19 28 28 19 78
26140201 US64M20L 20 30 30 19 78
26140211 US64M21L 21 30 30 21 78
26140221 US64M22L 22 32 32 21 78
26140231 US64M23L 23 32 32 21 78
26140241 US64M24L 24 34 34 21 78
26140251 US64M25L 25 35 35 21 78
26140261 US64M26L 26 36 36 21 78
26140271 US64M27L 27 38 38 21 78
26140281 US64M28L 28 40 38 24 78
26140291 US64M29L 29 40 38 24 78
26140301 US64M30L 30 42 38 24 78
26140321 US64M32L 32 44 38 24 78
26140331 US64M33L 33 45 38 24 78
26140341 US64M34L 34 46 38 24 78
26140351 US64M35L 35 48 38 24 78
26140361 US64M36L 36 50 38 24 78



Code Part No. Size (Inch) D1 (mm) D2 (mm) T (min. mm) L (mm)
26240101 US64H516L 5/16" 14 22 10 78
26240121 US64H38L 3/8" 16 22 14 78
26240141 US64H716L 7/16" 18 22 14 78
26240161 US64H12L 1/2" 20 22 14 78
26240181 US64H916L 9/16" 22 24 14 78
26240201 US64H58L 5/8" 24 24 14 78
26240221 US64H1116L 11/16" 26 26 17 78
26240241 US64H34L 3/4" 28 28 17 78
26240261 US64H1316L 13/16" 30 30 17 78
26240281 US64H78L 7/8" 32 32 19 78
26240301 US64H1516L 15/16" 34 34 19 78
26240321 US64H1L 1" 36 36 19 78
26240341 US64H1-116L 1-1/16" 38 38 19 78
26240361 US64H1-18L 1-1/8" 40 38 19 78
26240381 US64H1-316L 1-3/16" 42 38 19 78
26240401 US64H1-14L 1-1/4" 44 38 21 78
