Impact Sockets & Accessories

zoom

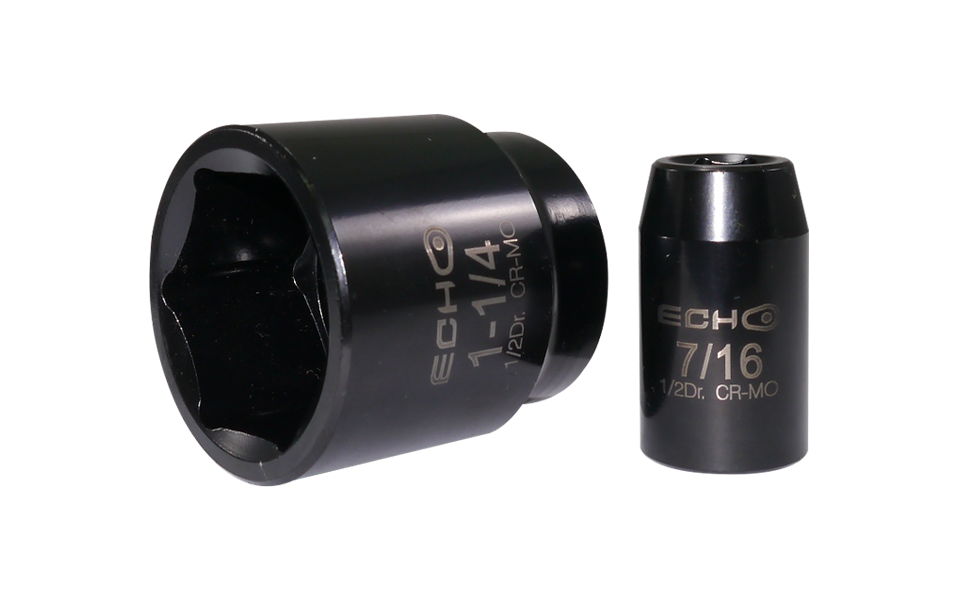

1/2"DR.

Standard Length US Type

Standard Length - Metric & SAE (AF)

Code Part No. Size (mm) D1 (mm) D2 (mm) T (min. mm) L (mm)
26140082 US64M8 8 14.5 22 9 38
26140082 US64M9 9 14.5 22 11 38
26140102 US64M10 10 17 22 11 38
26140112 US64M11 11 17 22 11 38
26140122 US64M12 12 18 22 11 38
26140132 US64M13 13 20 22 11 38
26140142 US64M14 14 22 24 11 38
26140152 US64M15 15 24 24 11 38
26140162 US64M16 16 24 24 11 38
26140172 US64M17 17 26 26 11 38
26140182 US64M18 18 26 26 11 38
26140192 US64M19 19 28 28 13 40
26140202 US64M20 20 30 30 13 40
26140212 US64M21 21 30 30 13 40
26140222 US64M22 22 32 32 13 42
26140232 US64M23 23 32 32 13 42
26140242 US64M24 24 34 34 15 44
26140252 US64M25 25 35 35 15 44
26140262 US64M26 26 36 36 15 44
26140272 US64M27 27 38 38 18.3 46
26140282 US64M28 28 40 38 18.3 46
26140292 US64M29 29 40 38 18.3 46
26140302 US64M30 30 42 38 18.3 46
26140322 US64M32 32 44 38 18.3 46
26140332 US64M33 33 45 38 20 46
26140342 US64M34 34 46 38 20 46
26140352 US64M35 35 48 38 20 46
26140362 US64M36 36 50 38 20 50



Code Part No. Size (Inch) D1 (mm) D2 (mm) T (min. mm) L (mm)
26240102 US64H516 5/16" 14 22 9 38
26240122 US64H38 3/8" 16 22 9 38
26240142 US64H716 7/16" 18 22 9 38
26240162 US64H12 1/2" 20 22 9 38
26240182 US64H916 9/16" 22 24 11 38
26240202 US64H58 5/8" 24 24 11 38
26240222 US64H1116 11/16" 26 26 11 38
26240242 US64H34 3/4" 28 28 11 40
26240262 US64H1316 13/16" 30 30 11 40
26240282 US64H78 7/8" 32 32 13 42
26240302 US64H1516 15/16" 34 34 13 44
26240322 US64H1 1" 36 36 13 44
26240342 US64H1-116 1-1/16" 38 38 13 46
26240362 US64H1-18 1-1/8" 40 38 16.5 46
26240382 US64H1-316 1-3/16" 42 38 16.5 46
26240402 US64H1-14 1-1/4" 44 38 16.5 46
