Impact Sockets & Accessories

zoom

3/8"DR.

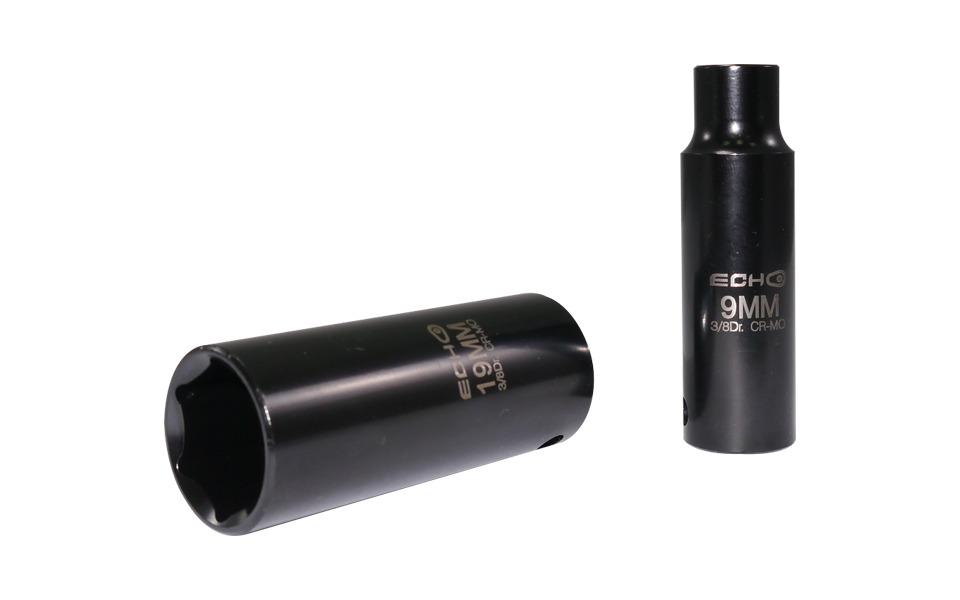

Deep Length US Type

Deep Length - Metric & SAE (AF)


Code Part No. Size (mm) D1 (mm) D2 (mm) T (min. mm) L (mm)
26130071 US63M7L 7 11.5 19 11 63
26130081 US63M8L 8 12.5 19 12 63
26130091 US63M9L 9 14 19 14 63
26130101 US63M10L 10 15 19 14 63
26130111 US63M11L 11 17 19 17 63
26130121 US63M12L 12 18 19 17 63
26130131 US63M13L 13 19 19 17 63
26130141 US63M14L 14 20 20 17 63
26130151 US63M15L 15 22 22 19 63
26130161 US63M16L 16 24 24 19 63
26130171 US63M17L 17 24 24 19 63
26130181 US63M18L 18 26 26 19 63
26130191 US63M19L 19 26 26 21 63
26130201 US63M20L 20 28 28 21 63
26130211 US63M21L 21 30 30 21 63
26130221 US63M22L 22 32 32 21 63



Code Part No. Size (Inch) D1 (mm) D2 (mm) T (min. mm) L (mm)
26230101 US63H516L 5/16" 12.5 19 12 63
26230121 US63H38L 3/8" 14.5 19 14 63
26230141 US63H716L 7/16" 17 19 17 63
26230161 US63H12L 1/2" 19 19 17 63
26230181 US63H916L 9/16" 20 20 17 63
26230201 US63H58L 5/8" 24 24 17 63
26230221 US63H1116L 11/16" 24 24 17 63
26230241 US63H34L 3/4" 26 26 19 63
26230261 US63H1316L 13/16" 30 30 19 63
26230281 US63H78L 7/8" 32 32 19 63
26230301 US63H1516L 15/16" 34 34 21 63
26230321 US63H1L 1" 36 36 21 63
