Impact Sockets & Accessories

zoom

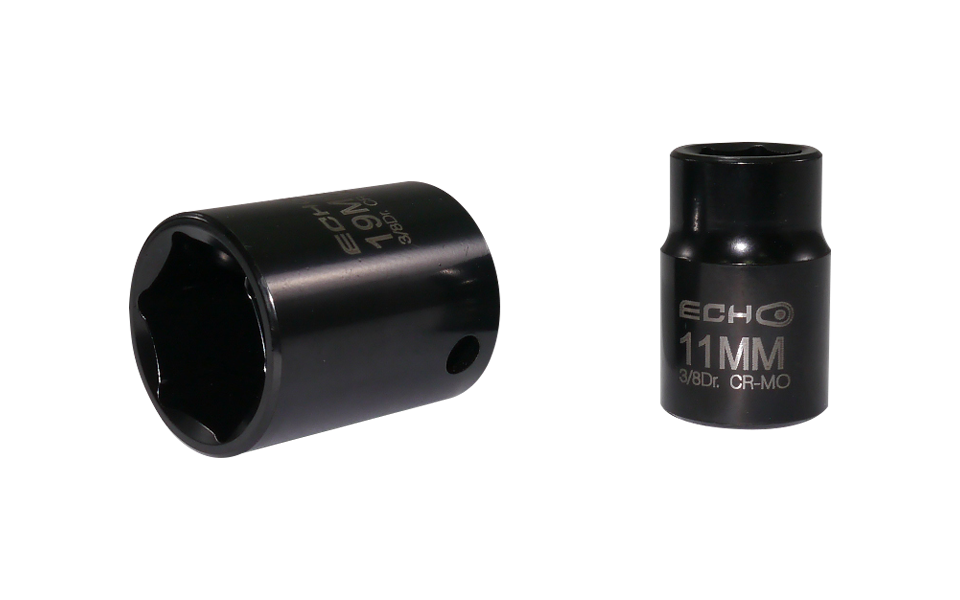

3/8"DR.

Standard Length US Type

 Standard Length - Metric & SAE (AF)

Code Part No. Size (mm) D1 (mm) D2 (mm) T (min. mm) L (mm)
26130062 US63M6 6 10.5 19 4 28
26130072 US63M7 7 11.5 19 7 28
26130082 US63M8 8 12.5 19 7 28
26130092 US63M9 9 14 19 7 28
26130102 US63M10 10 15 19 7 28
26130112 US63M11 11 17 19 7 30
26130122 US63M12 12 18 19 7 30
26130132 US63M13 13 19 19 7 30
26130142 US63M14 14 20 20 7 30
26130152 US63M15 15 22 22 10 30
26130162 US63M16 16 24 24 10 30
26130172 US63M17 17 24 24 10 32
26130182 US63M18 18 26 26 13 32
26130192 US63M19 19 26 26 13 32
26130202 US63M20 20 28 28 13 32
26130212 US63M21 21 30 30 13 32
26130222 US63M22 22 32 32 13 32



Code Part No. Size (Inch) D1 (mm) D2 (mm) T (min. mm) L (mm)
26230082 US63H14 1/4" 11 19 4 28
26230102 US63H516 5/16" 12.5 19 7 28
26230122 US63H38 3/8" 14.5 19 7 28
26230142 US63H716 7/16" 17 19 7 30
26230162 US63H12 1/2" 19 19 7 30
26230182 US63H916 9/16" 20 20 7 30
26230202 US63H58 5/8" 24 24 10 30
26230222 US63H1116 11/16" 24 24 10 32
26230242 US63H34 3/4" 26 26 10 32
26230262 US63H1316 13/16" 30 30 13 32
26230282 US63H78 7/8" 32 32 13 32
26230302 US63H1516 15/16" 34 34 13 32
26230322 US63H1 1" 34 34 13 32
